online cadmium detector

On-line cadmium detector select electrode sensors are designed to provide higher precision in water hardness, drilling mud, mining, drinking water, mineral water and seawater. Cadmium ions can also be used to monitor total hardness titration of water.

JAMES@MADSURGROUP.COM

specification：
measuring range	0.1M..5×10-⁶M (0.01..11,200ppm)
pH range	2…12pH
resolution ratio	0.001 ppm
measurement accuracy	±1%
TEMPmeasuring range	0…60℃
resolution ratio	0.1℃
measurement accuracy	±0.2℃
compensation mode	Automatic/manual
output	signal output 4…20 mA（Adjustable/three-wire system）
Current Accuracy	1%FS
output load	＜750Ω
data communication	Rs485(MODBUS-RTU)

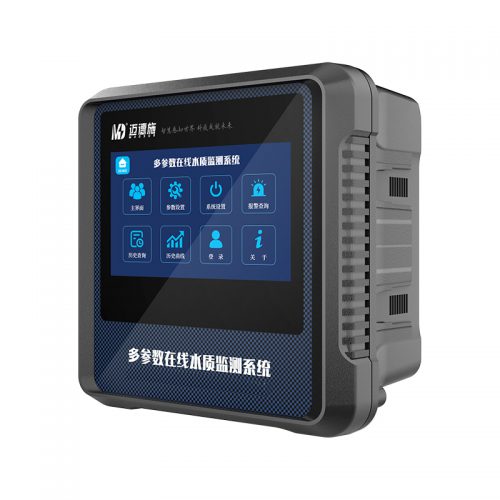

Controller parameters

Model	MDS-KP500
Display	4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight
	Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof)
Display size	95.0mm*53.9mm
Measuring range	-99999.0000~99999.0000
Password Protection	The default password is 0000
Compatible sensor	Digital sensor
Mounting method	Disk mounting (with chassis), wall-mounted mounting
Alarm relay	2 relays can set high and low alarm
Current output	2 isolated 4-20mA, maximum load 750Q, can be set
Communication port	RS485 Modbus RTU
Memory backup	All user Settings are stored indefinitely in EERPOM
historical data	The storage capacity of 8000 points is recorded at a 5-minute interval
Operating environment	-10~+50℃,0~95% relative humidity, no condensation
Storage environment	-20 to +70 ° C,0 to 95% relative humidity, non-condensing
The power supply	12V±10%
Power consumption of the instrument	less than 6W
Instrument size	144X145X85(mm)
Protection class	IP65
